RESEARCH ARTICLE
Robin K. Hilla*, Jill W. Fresenb and Fawei Gengb
aEllbogen Center for Teaching and Learning, University of Wyoming, Laramie, WY, USA; bIT Services, University of Oxford, Oxford, UK
(Received 1 May 2012; final version received 17 October 2012; Published: 17 December 2012)
Abstract
Lecturers in higher education often consider the incorporation of web technologies into their teaching practice. Partially structured and populated course site templates could aid them in getting started with creating and deploying web-based materials and activities to enrich the teaching and learning experience. Discussions among instructional technology support staff and lecturers reveal a paucity of robust specifications for possible course site features that could comprise a template. An attempted mapping from the teaching task as understood by the instructor to the envisaged course website properties proves elusive. We conclude that the idea of an initial state for a course site, embodied in a template, remains useful and should be developed not according to a formula but with careful attention to the context and existing pedagogical practice. Any course template provided for the use of lecturers should be enhanced with supporting instructions and examples of how it may be adapted for their particular purposes.
Keywords: course template; learning platform; pedagogical dimensions; course site properties
*Corresponding author. Email: hill@uwyo.edu
RLT 2012. © 2012 R.K. Hill et al. Research in Learning Technology is the journal of the Association for Learning Technology (ALT), a UK-based professional and scholarly society and membership organisation. ALT is registered charity number 1063519. http://www.alt.ac.uk/. This is an Open Access article distributed under the terms of the Creative Commons "Attribution 3.0 Unported (CC BY 3.0)" license (http://creativecommons.org/licenses/by/3.0/) permitting use, reuse, distribution and transmission, and reproduction in any medium, provided the original work is properly cited.
Citation: Research in Learning Technology 2012, 20: 18665 - http://dx.doi.org/10.3402/rlt.v20i0.18665
As the World Wide Web is pressed into greater service for teaching and learning, instructors in higher education who want to explore the potential of a course site and do not know where to start often seek help from their institution's learning technology support team. The instructional technologist in the team generally reaches for an illustration of a course site, one that shows how the institutional course platform might support teaching and learning, and how a particular course site might be built with the instructor's own materials. A course template derived from that illustration would provide a starting point that can be adapted to the needs of the instructor, the course and the target students. Our aim is to analyse the concept of a course template and its possible components and to examine the factors that influence its design and structure.
This article is intended to be the first of a short series, with the following articles offering more template examples and evaluations of their use.
The authors of this article are educational technology specialists, with experience in teaching in higher education. We have, individually and collectively, deep and broad experience in addressing diverse requests from academic staff members and, in particular, providing assistance in conceptualising electronic course sites and how best to integrate these into a blended learning situation.
We are based in two different higher education institutions, in two different countries:
The particular course platform known and used in common is Sakai, called WyoSakai at Wyoming and WebLearn at Oxford. Our collective past experience includes time spent at other institutions and work with a variety of other course platforms.
We frame our research question in terms of a “guiding scenario”, as follows. Instructors dipping into technology-supported teaching are often at a loss as to what they need to know, need to have and need to do – and even what questions to ask. They may only vaguely know of the existence of the instructional technologist, whose task it is to support academics in their desired uses of technology to complement their teaching practices. They may attend demonstrations and workshops, speak directly to instructional technologists or perhaps only consult the help website and supporting documentation provided as part of the electronic teaching and learning platform.
We (the instructional technologists) might make a statement such as this one:
If you want a website for a course like yours, start with this template.
The variables in this statement are:
The research question can be phrased according to the principles of systems design, in terms of input, process and output. We seek to identify the input and output parameters, and to design the process to map from the input (“a course like yours”) to the required output (“this template”), which the instructor will ultimately build into the final course site (Figure 1):

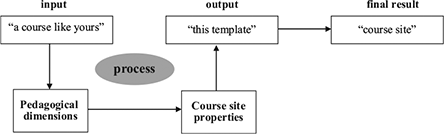

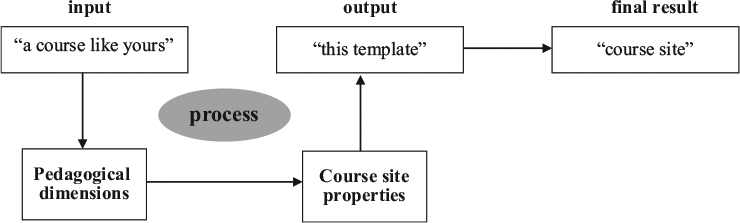

Figure 1.
Process diagram representing our research question.
To avoid confusion, particularly regarding the US–UK nexus, and in the hope of making our research accessible to the greater educational community, we clarify our understanding and use of terms that are central to this discussion.
We use the term “course platform” to refer to a web-based application to support teaching and learning. Such a platform is often referred to as a Learning Management System (LMS), Virtual Learning Environment (VLE), Collaborative Learning Environment (CLE) or Course Management System (CMS).
A “course site” (or “course website”) refers to a site on the course platform that provides collaborative space for a defined academic unit of teaching, usually circumscribed by time span and membership. Such a course site recognises roles and procedures found in most higher education institutions and provides pedagogical functionality for use by instructor, student and other roles.
We use the generic term “instructor” to refer to a teacher in higher education, formally called “faculty” or “academic staff”; a professor, lecturer, tutor or other category of pedagogical professional who leads classes with materials authored, selected and assembled by him- or herself, with the aim of providing effective learning experiences for students. The category of instructors includes teaching assistants who may be graduate students, that is, they are still students themselves but may perform teaching and assessment duties.
An “institution” refers to a higher (or tertiary) education institution, a community college, four-year college or university. Alternatively, it may refer to an organisational unit within a university, for example, the College of Medicine. A college may also refer to an institution of further education and training, for example, a vocational college or a “college” in Oxbridge terminology, namely an autonomous and independent locus of residence and tutoring (allied to the university which is the degree-conferring body).
An “instructional technologist” is an expert in higher education practice, in particular the use of learning technologies to support teaching and learning. Instructional technologists are employed by an educational institution to support and assist academic staff in designing and reflecting on their teaching practice and its enhancement by the appropriate use of instructional technology. Such experts are also referred to as “instructional designers” or “learning technologists”.
We use the term “course template” to refer to a framework for, or initial state of, a course site, at the point of delivery from the instructional technologist to the instructor. A template is more developed than a blank site that is available in the course platform, but it awaits the teaching and learning content – the body of knowledge that constitutes the core materials and activities in the course.
An “academic group” refers to a university department, or college, or faculty (in British terms), or a team of staff working together to deliver an academic programme. When referring to students, the academic group is the envisaged target group of students who will be enrolled in a particular course.
Any course site can be developed from any template. While some institutions may look to course templates to enforce standards, we make no particular accommodation for this case. We assume that the course platform defines a default role suitable for instructors, comprising a set of privileges. Thus, instructors building course sites based on templates will still have control over all aspects granted by those privileges. The purpose of a course template is to suggest, not to prescribe.
At least some of the setup of course sites can be done locally. Commercial products with proprietary code, such as Blackboard, Pearson Learning Studio, Desire2Learn and others, do not afford the customisation options afforded by an open-source platform but still exhibit the properties that we discuss and may provide some means of configuration before course site deployment.
We do not assume that the “course like yours” is necessarily the outcome of a thoughtful design process on the part of the instructor. While that circumstance is desirable, we wish to meet a wide range of faculty needs and preparation levels. The faculty member may be unguided and may have an inchoate view of the upcoming teaching task, a view that is “weakly manifest,” or “opaque”, in the terms of Masterman and Vogel (2007); even so, the instructor's perspective drives the development.
Many mentions of course templates propose only interface elements, such as application screens that guide an instructor through the creation process. Examples are the wizards that are widely used for the construction or configuration of software tools but are not necessarily pedagogical in nature or purpose. Many of the pedagogical treatments of course templates with which we are acquainted address theoretical or conceptual dimensions in the abstract, without suggestions for accompanying implementation. Some articles adopt a perspective with a particular goal, such as minimising the barriers encountered by students who are learning to use new technology. Such studies are useful but none coincides exactly with the aim expressed in our motivating scenario. This article takes as its point of departure broad considerations of how to find, describe and categorise course design dimensions that will inform our construction of electronic course templates, embracing the widest variety of notions that are expressed informally by instructors. In a course template project at the University of Glamorgan (Woodward 2010), the first goal was “To provide students with a consistent, accessible overview within their own modules” (p. 1), but the project team recognised that “academic staff should retain flexibility and choice in how they present the detail of their content, and that the template should facilitate the work of building a module and not restrict it” (p. 2). This approach aligns with our assumption of offering a suggested outline or framework, without prescribing the complete format or content of the course site.
Our approach is similar to that of Jara and Mohamad (2007), who present a list of course components leading to a list of suggested pedagogical templates for e-learning, which they deem to be models of technology integration (Jara and Mohamad 2007). They disclaim comprehensive coverage: “These templates do not attempt to cover the full range of possibilities nor to consider all variables …” (n.p.). We attempt to provide a broader spectrum of dimensions, led by faculty practice that we have observed.
Wright (2011) offers a comprehensive list of course components, intended for reviewing existing course sites, for example accessibility, organisation, layout, instructional strategies, and so on. We can interpret his work as contributing to either the pedagogical course dimensions that form the teaching task (“a course like yours” in our scenario) or the desired course site properties to build into “this template”.
Wright's (2011) list of components resonates with the design and pedagogical factors presented by Fresen (2005) who synthesised six categories of factors – institutional, technology, lecturer, student, instructional design and pedagogical – that determine the success of the design process which is ultimately realised in a web-supported course. In this article, we focus more sharply on the instructor's concept of the task, and how an electronic template can support development of a course site by offering components for consideration and adaptation by individual instructors.
The extensive literature on learning design may yield ideas as to what components could be included in initial course templates. Brouns et al. (2005) discuss how learning design patterns could be detected and reused for new learning designs. In our article, templates, a similar concept to patterns, are explored to help instructors who are not ready, willing or able to undertake formal learning design to get started with developing a course site. Similarly, Hernandez-Leo, Asensio-Perez and Dimitriadis (2005) propose a structured and scripted method of incorporating collaborative teaching methods into standards-based learning design. This detailed process pre-supposes instructors eager to undertake the exercise, who, indeed, call for such methods to be available in their initial course sites, whereas our own experience uncovered few such instructors. While Hernandez et al. (2005) do not provide a general mapping from course dimensions to course site properties suitable for broad circumstances, as in our initial goal, they do offer a fine-grained mapping for a related task. Both Brouns et al. (2005) and Hernandez-Leo et al. (2005) provide scenarios for successful re-use of learning designs already known to work, encouraging our own effort and prompting, as the next logical step, the design of practical course templates.
Vogel and Oliver (2006) conducted a study that investigated practitioners’ designs for learning in terms of using a VLE. They note that “For most teachers, a VLE gives them an unprecedented opportunity to create and to publish a representation. Yet it is this very control over the representation, encouraging spontaneous, incremental, reactive design straight into the VLE, that makes it difficult to retrospectively piece together the stages of a given course area's design” (Vogel and Oliver 2006, p. 39). A course template could constructively channel that control by providing a more structured starting point.
Masterman and Vogel (2007), commenting on Vogel and Oliver's (2006) and other studies, note that representations of learning designs are often dispersed and fragmented, rendering clear implementations problematic. This finding resonates with our difficulty in coaxing ideas from academic staff as to what elements they would like to see in a course site template – although academics know that they want an electronic course site, they do not always work to a detailed design or “gestalt”, to use the term of Masterman and Vogel (2007).
To develop the ideas expressed in this article, we shared our own experiences among our team and in conversation with fellow user support and technical staff. One of us had already described rudimentary course templates in instructor workshops (at Wyoming) for a few years (Hill 2011). These were born of questions and requests from instructors themselves, and verified by approval from those instructors, but not distributed in any formal way. During early 2011, we conducted exploratory and unstructured user interviews with ten individuals at Oxford – eight lecturers/tutors and two departmental administrators – and a short exercise at a WebLearn user group meeting. In some cases, we mentioned our goal of designing templates. In other cases, sample sites shown or described to us served to reveal some structure, layout and content of possible templates. We undertook no systematic examination of course sites themselves. We found no opportunity to discuss the question of course templates or their desirable properties with students.
Our academic informants did not prove to be a rich source of suggestions that probed the potential of technology-enhanced pedagogy in any depth; in fact, they articulated only hazy ideas about the type of template that might help them. Most suggestions addressed “look-and-feel” aspects, commonly requesting display of their departmental name and images, or a particular layout for a course home page, or limiting their consideration to the placement of banners, menus and links.
Even those with some skills in technology-assisted teaching did not distinguish sharply between the course site in the VLE and other websites employed by them and their students. They sometimes requested modifications to web services and applications external to the course platform (such as browsers and reader clients) or integration with commercial products (such as publishers’ materials) that are beyond the control of the instructional technologist. Quite a few requests dealt with administrative tasks involving calendars, accounting and reporting, and integration with other information systems that prevail at the institution.
In short, instructors do not carefully consider course site properties per se as they develop strategies for teaching and learning. The question is: Why should they? They are well-versed in their fields, not necessarily in education or educational technology. Unprompted, instructors do not expect technology to support their teaching but rather to facilitate their administration and paperwork.
A defender of user engagement would argue that we need to rethink the objectives of the interviews. We should not expect the users to dictate the format and structure of templates, as such development is our task. A car manufacturer who wants to design a new car does not ask the customers what the next model should be like. Instead, they ask about customers’ driving experience in the current model, which is then used, along with other elements, to design the next one. In our project, we took the most that we could from our academic user data under the circumstances.
We now consider what serves as the input in our scenario, the instructor's conception of the teaching task that he or she faces (“a course like yours”), regardless of technological considerations. The variety of large and small specifications that might be articulated, or inferred, makes the synthesis a daunting task, but the set of use cases is the result of that synthesis. While we attempt a classification that is as broad as possible, we acknowledge that it is not exhaustive and encourage other practitioners to offer alternative formulations depending on their institutional circumstances.
What are the distinguishing features that the instructor might identify as he or she informally describes the teaching task at hand, with encouragement to elaborate? We suggest the following framework of 12 pedagogical dimensions grouped into four main categories, each of which is discussed below Table 1:
This category captures simple superficial dimensions, which may be quantitative, bureaucratic or institutional, and yet are reported by instructors with the implication that they inform the teaching task.
This category emerges from what instructors do, or intend to do, either in normal settings or under pressure of expedience.
This category adopts, or fosters, an underlying educational theory or teaching strategy.
This category deals with planned and expected activities, and instructor and student participation on the course site, both individual and collaborative.
Now that we have attempted to crystallise the instructor's expectations of his or her teaching task, elicited as raw data and interpreted by us, we focus on properties to be considered in designing an electronic course site template to support the teaching task.
The properties of a course site form the components of a course template, comprising various settings, policies and procedures, and initial content. As mentioned earlier, this is the output from our scenario (“this template”). Our goal is the formulation of a template that attempts to address the pedagogical dimensions of the instructor's course (“a course like yours”). The delivered template will consist of a set of site properties instantiated in a course site, bundled with accompanying help documentation and guidance on how to use the template.
Since any aspect of an information system might play a part, it is difficult to write an exhaustive list of properties that instructional technology professionals might consider relevant. We enumerate five properties to address in constructing course site templates (Table 2), shown vertically for combining with the pedagogical properties (Table 1) into our model presented in Figure 2.:
Table 2.
Course site properties.
The pedagogical dimensions that might be elicited from the instructor (the “input” in our scenario) form a set that one would expect to align closely with the course site properties intended to meet the instructor's needs. We attempted to draw a logical mapping between the two sets of parameters, such as a matrix; however in a table or matrix, the expectation is to “fill each cell” with a “product” of the row and column items, and these proved to be elusive. How does the Logistical value “Duration” influence the course site property “User Roles?” – Not in any meaningful way; nor did other robust associations between pedagogical dimensions and course site properties emerge.
Jara and Mohamad (2007, Table 3, p. 8) provide a mapping table that associates their course components with their templates, for which the values of the associations are the delivery modes “most likely to be used”. While useful to programme administrators and professionals in learning design, their work is not directed to the construction of a course template from scratch, and so their mapping serves a different purpose.
We came to the realisation that each parameter influences others in “organic” ways, implying that a lattice is a better metaphor to adopt, producing a more multi-dimensional texture. Thus, our goal of providing a “mapping” between the two sets of parameters gave way to a more organic interwoven lattice, which neatly displays the interconnectedness of both sets of dimensions (Figure 2).

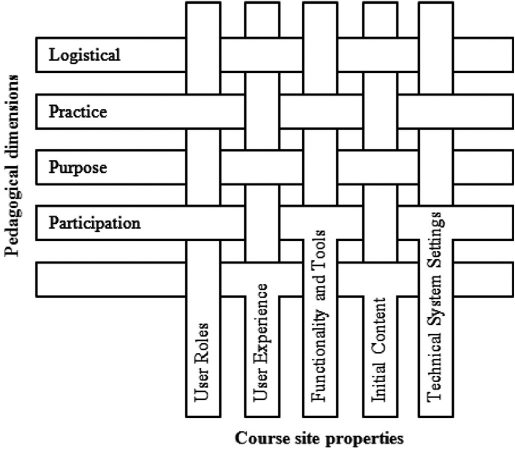

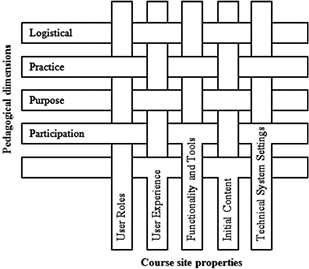

Figure 2.
Lattice model for course templates.
Various authors in the field of learning design have sought a visualisation of learning designs. In particular, Cross (2012) developed a lattice model (and subsequently the Lattice II framework) to represent the “designed learning problem space”. Cross's (2012) model is a comprehensive collection of interconnected boxes, with “learning activity and tasks” at the centre of a learning design.
Our investigation has revealed no algorithm for mapping from the pedagogical dimensions (“a course like this”) to the course site properties (“this template”), but rather a more intricate journey. We offer two examples that have emerged from University of Wyoming's experience. There, we see a strong need for a simple course template for distribution of materials, teacher-to-student, as expressed by instructors who conduct the interactive teaching and assessment activities in the classroom. We also see a need for a course template for those instructors who want to foster collaborative student work online, for sharing and assessment.
Major distinctions between these two templates are found in the instructor-controlled property “User Roles” and different values of the pedagogical dimensions “Pedagogical Plan” and “Extent of Web Work”. The fact that Jara and Mohamad (2007) found similar distinguishing features suggests primacy of those dimensions over the others listed. These dimensions may indeed be the most significant or perhaps they are simply the most vivid to instructors not yet familiar with the landscape. The asymmetry of features may indicate that our notion, of course sites expressed in terms of properties and teaching tasks expressed in terms of dimensions, is not the best way to ask the question about how to construct course templates. We invite other research to elaborate or even dispute the ideas presented herein.
The course templates provided are merely sketches for illustration, as the level of detail involved in a full specification exceeds the scope of this article (Figure 3 and Figure 4).

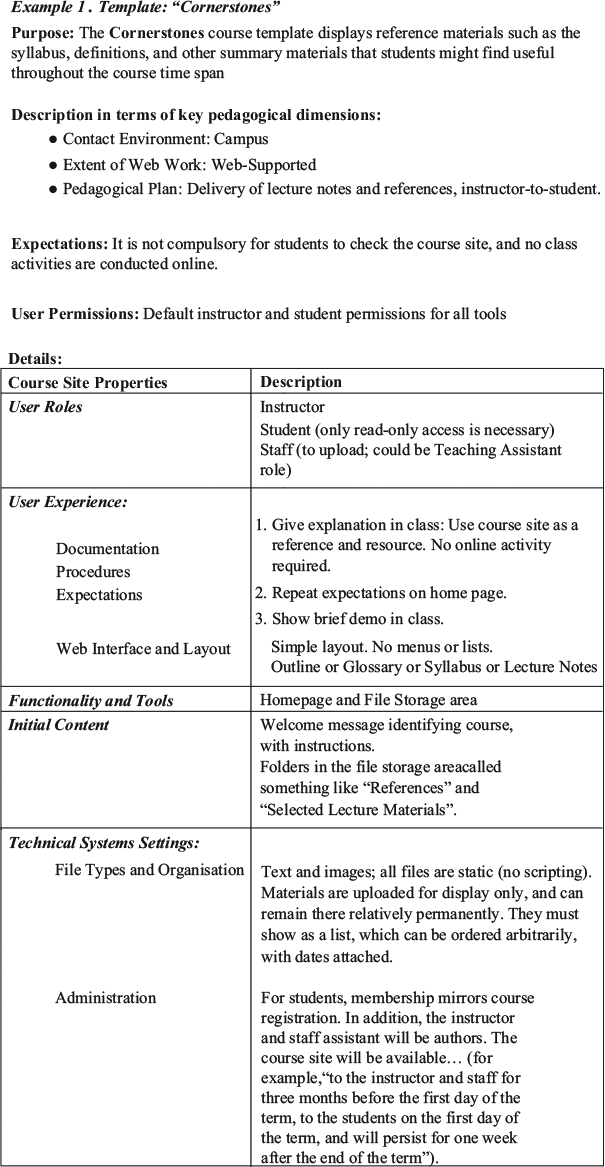

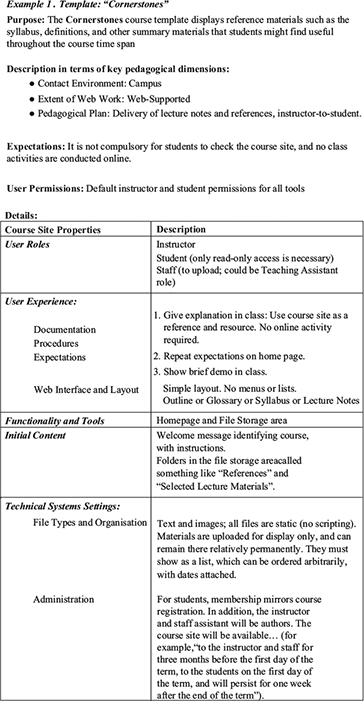

Figure 3. The "Cornerstones" Template.

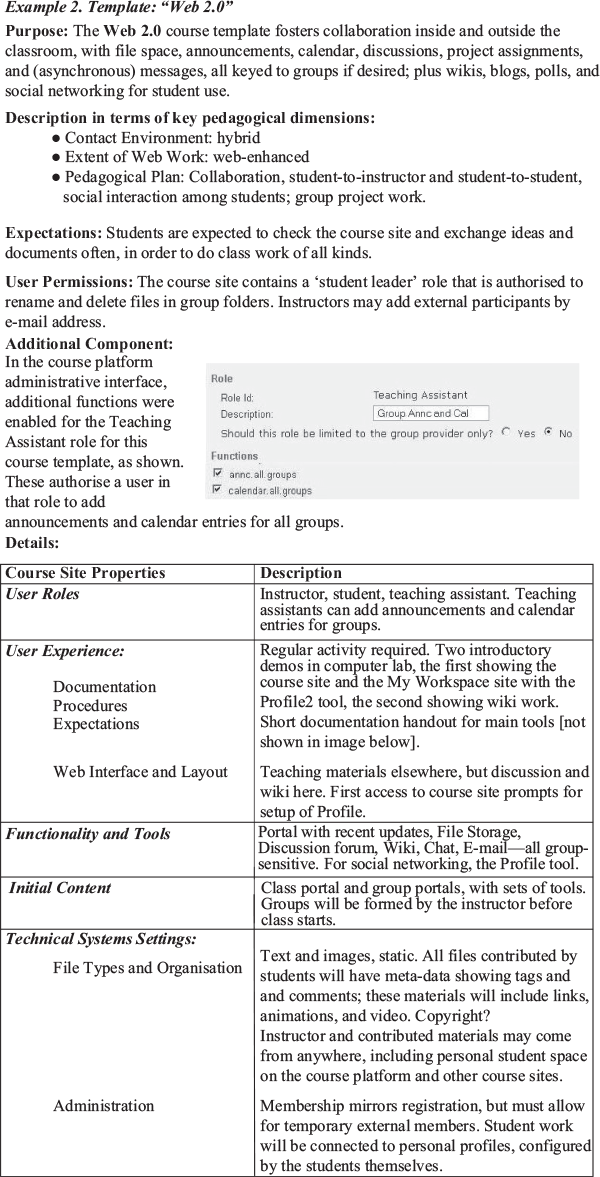

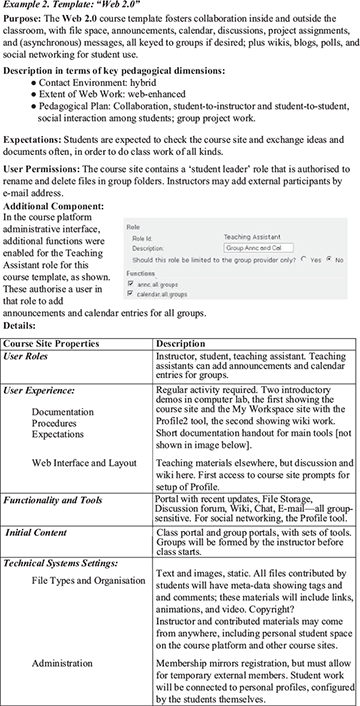

Figure 4. The "Web 2.0" Template.

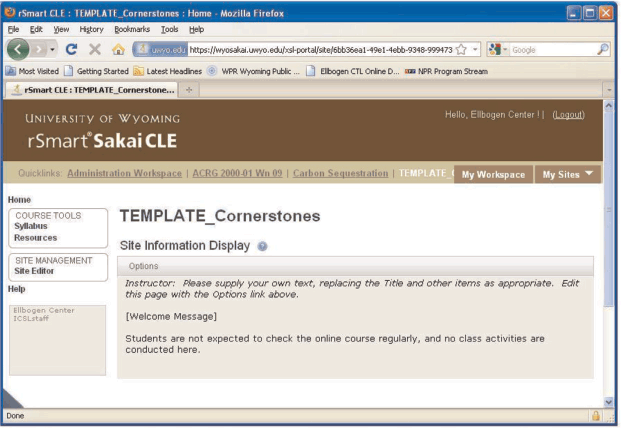

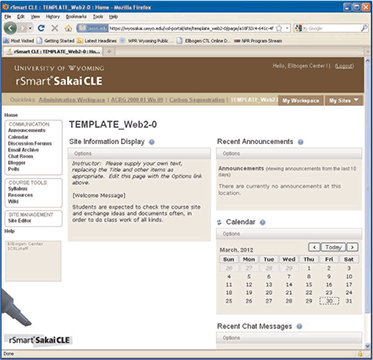

Construction and delivery of a course template can take many forms, from manual to automated, static or dynamic. Simple duplication of an existing object is a common method for creating any sort of data structure. Many institutions probably follow this practice already, taking as the template some “base” course site, constructed and saved in advance. A course site could be built from scratch and delivered to an instructor through a completely manual process as well, the template taking the form of written instructions. In a more advanced setting, a course site might be built from a dynamic template, requiring some selection and insertion of components such as user roles and initial discussion prompts. We hope to explore those options in future research.
However, in all cases, we urge the delivery of user guidance to accompany the template, either built in or delivered separately along with other supplementary materials.
It appears, to instructors and instructional technologists, that a course template would be a good way to get started in developing a course website for a given teaching task. We have identified parameters associated with the teaching task, and course site properties enabled by an electronic course platform, dimensions which are organically interwoven and interdependent.
As no universal mapping between pedagogical dimensions and course site properties has emerged, we suggest that an institution adapt the pedagogical dimensions or classifications, and consider the course site properties, that matter locally, avoiding restriction to any single dimension. An institution should allow the best course templates to emerge from practice judiciously guided, observed and implemented.
Related questions include whether course templates can promote good pedagogy and how course platform design principles might affect templates. Our discussions of course templates with users were often couched in conversations about the general improvement of teaching and learning. However, we attempted to capture teaching practices in general rather than verifiably good teaching practices. We would like to see investigation of the fostering of good practices through course sites, and how to apply design principles such as the social constructivist teaching philosophy adopted by Moodle, and the collaborative, open and re-mixable design of the Sakai Open Academic Environment (OAE) to the challenge of designing initial course states.
In addition to the course site, a course template should include other elements bearing on its successful deployment such as user guidance and policy explanation. Instructional technologists fielding requests that are based on superficial dimensions should probe for more substantive pedagogical objectives to select or formulate a course template that will offer beneficial teaching and learning guidance and scaffolding.
Author Robin Hill was supported by sabbatical salary from her institution and by facilities generously provided for her visit by Oxford University IT Services. We are grateful for the participating contribution of Liz Masterman of Oxford University IT Services.
