Jill W. Fresena*, Robin K. Hillb and Fawei Genga
aAcademic IT Services, University of Oxford, Oxford, United Kingdom; bDepartment of Philosophy, University of Wyoming, Laramie, WY, USA
(Received 11 June 2013; final version received 23 October 2013; Published: 1 April 2014)
Abstract
The collection of electronic course templates suggested in this article results from collaborative investigation between instructional support staff and academic staff users of the virtual learning environment (VLE) at two institutions, one in the United Kingdom and the other in the United States. The particular VLE in use at both institutions was Sakai, although the experience described here can be applied to the design process and workflow using any VLE that allows the selection and some configuration of standard tools.
We applied the lattice model of Hill, Fresen and Geng (2012) to design and build a set of six course site templates, which are used as the basis on which site owners can easily build new sites in the VLE. As the ultimate goal of template provision is to underpin pedagogy, academics are free to use a template or build a site from scratch, based on their own teaching context, and they may adapt any template according to the pedagogical purpose and nature of the course. The underlying assumptions are that academic staff retain full control over the content, tools and permissions in their new site. The templates are not mutually exclusive – that is, aspects from any template may be incorporated, where applicable, into another one.
We conclude that it is helpful for the VLE support team to take the lead in proposing a set of templates according to the predominant teaching and learning models in use at a particular institution, which may contribute to consistency across course sites and ultimately result in an improved student learning experience.
Keywords: virtual learning environment; learning management system; course templates; pedagogical dimensions; course site properties; faculty support
*Corresponding author. Email: jill.fresen@it.ox.ac.uk
Research in Learning Technology 2014. © 2014 J.W. Fresen et al. Research in Learning Technology is the journal of the Association for Learning Technology (ALT), a UK-based professional and scholarly society and membership organisation. ALT is registered charity number 1063519. http://www.alt.ac.uk/. This is an Open Access article distributed under the terms of the Creative Commons CC-BY 4.0 License (http://creativecommons.org/licenses/by/4.0/), allowing third parties to copy and redistribute the material in any medium or format and to remix, transform, and build upon the material for any purpose, even commercially, provided the original work is properly cited and states its license.
Citation: Research in Learning Technology 2014, 22: 21669 - http://dx.doi.org/10.3402/rlt.v22.21669
Part of the work of learning technologists1 (also called ‘instructional designers’) is to support academic staff (‘lecturers’ or ‘instructors’) in reflecting on their pedagogical practice and to explore how technologies such as virtual learning environments (VLEs) (also called ‘learning management systems’ or ‘course management systems’) may contribute to streamlining the teaching function and enriching the student learning experience. The purpose of this article is to present a collection of suggested electronic templates for academic staff to use as a starting point when embarking on developing a course component (also called a ‘site’ or ‘course site’) within an institutional VLE. Evaluating the templates in practice, and their potential impact on teaching and learning, is the subject of further research.
This article (Paper II) is the second in a series of three by the same authors. Paper I, ‘Derivation of electronic course templates for use in higher education’ (Hill, Fresen, & Geng, 2012), describes the thinking processes and exploratory attempts to analyse and classify dimensions of course sites leading to a conceptualisation of types of templates. The present article presents the distillation of that process in the form of a collection of electronic templates to be used as a practical starting point for academic staff who embark on setting up a course site in an institutional VLE. Paper III will report on findings after implementing the suggested electronic templates and gathering feedback from academic staff and students.
This discussion assumes that a higher education institution employs an institutionally supported VLE, which may be a commercial one (such as Blackboard or Desire2Learn), or an open source one (such as Sakai or Moodle). The particular platform currently used by the authors is Sakai; its open-source model means that in-house developers are able to modify and customise the underlying source code. However, this is not a prerequisite for the collection of templates suggested in this article. The suggestions here may be applied in any higher education institution, insofar as its VLE allows prospects for customisation.
We acknowledge that electronic sites for courses which run totally at a distance have special requirements in terms of enhancing socialisation, interaction and communication between lecturers and students, students and students, and students and learning materials (Anderson, 2004). In this article, the focus is less on pure distance courses; our milieu presupposes a blended learning approach with at least some measure of face-to-face contact between lecturers and students, even if this is infrequent or of short duration.
We understand a ‘template’ to be a framework for, or initial state of, a course site, intended as a partially built online space to enable lecturers or tutors to ‘get started’ quickly. ‘A template is more developed than a blank site available in the VLE, but it awaits the teaching and learning content – the body of knowledge that constitutes the core materials and activities in the course’ (Hill et al., 2012, p. 4).
Our work is based on three important assumptions:
The research literature in higher education and technology yields many definitions, purposes and types of ‘e-learning templates’. The e-Learning Coach (2011, online) provides the following definition: ‘eLearning templates refer to a set of standard screens you can create for a course to provide visual and cognitive continuity’. One should not underestimate the importance of taking cognitive continuity and cognitive load into account. As one's senses are bombarded with myriad demands and stimuli in today's technologically driven world, there is a risk of cognitive ‘switch off’, if not cognitive ‘burnout’. Hence, the goal of designing and producing electronic course templates is to facilitate building electronic course sites by academic staff – quickly and easily, as well as to make the student learning experience more structured and consistent (see Paper III – forthcoming).
Paper I in this series (Hill et al., 2012) investigated ‘how to find, describe and categorise course design dimensions that will inform our construction of electronic course templates, embracing the widest variety of notions that are expressed informally by instructors’ (p. 5). We proposed a lattice model (Figure 1 in this paper), interweaving Pedagogical Dimensions (Logistical, Practice, Purpose and Participation) with Course Site Properties (User Roles, User Experience, Functionality and Tools, Initial Content and Technical System Settings). We provided two example templates – ‘Cornerstones’ and ‘Web 2.0’ which reflect respectively ‘a strong need for a simple course template for distribution of materials, teacher-to-student … and a course template for those instructors who want to foster collaborative student work online, for sharing and assessment’ (p. 14).

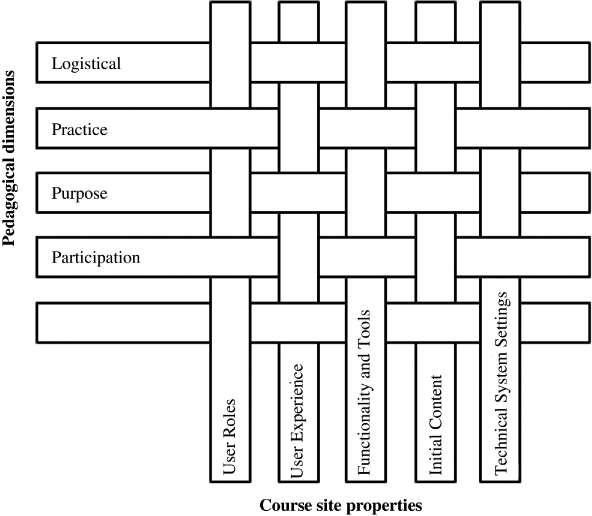

Figure 1.
Lattice model for course templates (Source: Hill, Fresen, and Geng, 2012).
The Joint Information Systems Committee (JISC) in the United Kingdom found that ‘Practitioners teach and learners learn in a context of increasing choice. Effective practice in a digital age includes selecting the most appropriate tools for the purpose’ (JISC, 2009, p. 51). Interestingly, for various (certainly understandable) reasons, the uptake amongst academic staff of electronic tools and technologies to support teaching and learning tends to remain low (Fresen, 2011). Certainly, whatever support mechanisms (such as templates) an instructional technology team might consider developing, such tools need to offer clear savings in terms of time, energy and frustration. Woodward (2010) describes the dual demands for an electronic template: ‘academic staff should retain flexibility and choice in how they present the detail of their content, and the template should facilitate the work of building a module and not restrict it’ (p. 1).
Jara and Mohamad (2007) make the same point in their project which undertook the design of pedagogical templates for e-learning: ‘The goal of this set of templates is to help academic staff who are starting to use learning technologies in their teaching and learning, by providing a structured and simplified overview of possible options. The aim is to facilitate the journey into using technology in teaching and learning, rather than prescribing it or defining its limits’ (p. 2). Both studies just mentioned (Jara and Mohamed, 2007; Woodward, 2010) report on the development of templates to address specific needs and current practice at their respective institutions. This paper is a similar ‘second step’ for the current authors – to design, develop and support specific templates, together with guidelines for their use within our particular VLEs.
Jara and Mohamad (2007) distilled two models from the literature as ‘offering potentially useful categorisations for our purposes’ (p. 4):
These two models, and indeed Jara and Mohamad's (2007) resulting set of seven templates, focus on the degree of face-to-face and online learning components in a course – in other words the position of a course along the blended learning continuum. This is certainly one aspect of course design; our collection aims to embrace broader aspects according to the lattice model (Hill et al., 2012).
The lattice model (Figure 1) illustrates the organic interplay between pedagogical dimensions and course site properties proposed by Hill et al. (2012).
Although the lattice model may suggest that pedagogical dimensions are given, and course site properties are the results of the design exercise, the actual state of affairs is that any cell may lead to any other, or may leave all paths open. Two examples are provided below to illustrate possible points of intersection. In what follows, the dimensions and properties are indicated in bold (row and column elements in Figure 1), and factors that they contain are indicated in italics. For details of the purpose of the lattice model, the pedagogical dimensions, course site properties and the factors they contain, see Hill et al. (2012).
Example 1: One of the factors in the Practice dimension is Course activity type. An activity such as a field trip may combine with the Logistical dimension Size of Student Enrolment to determine a reasonable size of groups, not only for the field trip but also for online collaboration before and after the trip. The User Experience Documentation factor should make available in advance, the procedures and expectations for the excursion. The activity may require a User Role such as ‘teaching assistant’ for group leaders to post group findings after the trip. It is far from necessary, however, that such a User Role should be included; the posting of group findings may be managed by some other role or associated permissions. Thus, the lattice model illustrates not decisions to be taken but aspects for consideration and how they may affect one another.
Example 2: The Logistical dimension Academic Group, if the group emphasises experimentation (for example, a science department), might intersect the Initial Content property with the provision of a lab manual, which might then determine that the Participation dimension Extent of Web Work is appropriately ‘web-enhanced’ rather than any of the other values for that factor. What other course site properties should be considered? Perhaps other properties might be considered, such as a discussion and assessment addressing lab safety, or perhaps none, if those matters are handled elsewhere.
In short, the lattice model is descriptive rather than prescriptive; a heuristic rather than an algorithm. The model, with its enumeration of factors, provides ideas that may or may not apply to any given teaching project. To claim otherwise would be to subvert the creativity and agility required for good teaching. Concrete suggestions, such as those presented in a template, however, can provoke substantial thought about pedagogy; that is the reason for developing templates in the first place.
This section offers a collection of six templates for course sites in a VLE, in a blended learning situation. The set does not attempt to cover the full range of possibilities, or to include all factors that may have an influence on a particular course site. It simply reflects one possible distillation that is intended to be practical, easy to understand and useful to academic staff before, or even without, support from learning technologists.
The hope at the beginning of the project was to discover some sort of visual mechanism (a continuum, a stepladder, a grid?) to represent the collection of templates. However, we came to the realisation that it does not make sense to structure the collection in terms of a progression or hierarchy of any sort, since we seek to avoid implying that ‘more’ e-learning implies better, more highly rated or more innovative learning. Thus, the collection is presented simply as a ‘group’ of templates (see Figure 2). Note that in Figure 2, the ‘Content’ template replaces the ‘Cornerstones’, and the ‘Web 2.0’ remains the same as the example provided in Paper I (Hill et al., 2012).

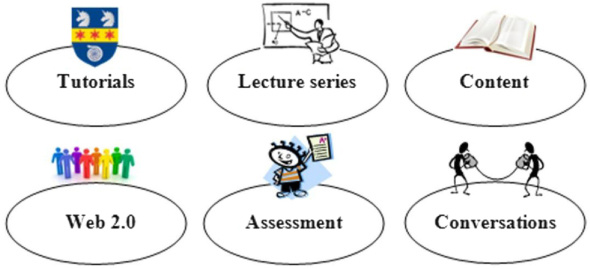

Figure 2.
Collection of six suggested course site templates.
Some of the templates conceptualised here are customised for a traditional, face-to-face, research-intensive university based on the British (Oxbridge) tutorial model. In such a university, students are free to select which lectures they wish to attend to support their learning pathway, and undergraduate students participate in small group tutorials under the guidance of an expert tutor; hence, the inclusion of a ‘Lecture series’ template and a ‘Tutorials’ template. In a traditional, primarily face-to-face, research university based on the American model, with discussion or recitation components to classes, these two templates might be combined into what might be called ‘Enrichment’ (offering supporting learning materials, over and above the basic ‘Content’ provision of organisational information).
We do not favour the more complex templates, sophisticated and feature-rich as they may be, over the simpler ones but rather encourage the selection of a template at the level appropriate to the pedagogical plan. Academic staff should view their course site setup and maintenance process as a balance between their need to make use of supporting technology and the amount of their time and effort that they can afford to commit to using the technology effectively.
The template building process was the result of a combination of the theoretical analysis undertaken in Paper 1, the practical experience of the authors and the particular institutional context. We met as a small team of learning technologists to agree on the wording for the purpose of each template, appropriate tools to incorporate and how to surface existing help resources to provide just-in-time support.
We started by using the conceptual basis and the two examples that emerged from our earlier work (Hill et al., 2012). We trimmed down the lattice model (see Figure 1), incorporating an eclectic mix of its dimensions (shown in bold in the following text), and leaving academic staff the freedom to make their own adjustments, particularly with regard to the Pedagogical Dimensions. Being a team of learning technologists supporting the use of the institutional VLE, we focused more intensively on Course Site Properties. As we explained in the earlier work, we refined our original intention to derive a mapping from Pedagogical Dimensions to Course Site Properties into a more flexible interpretation of teaching needs.
User Roles are the pre-defined, standard roles within our VLE, with their associated default permissions. The User Experience property was translated into detailed help and support for site owners regarding the user interface (‘Instructions on how to build this site’), together with reasons for incorporating certain features or tools, suggestions and links to help guides and tutorials. This property also reflects the recommended Guidance afforded to instructors (Hill et al., 2012). Figure 3 shows the detailed instructions and Figure 4 shows the links to further help and guidance for one of the templates – the ‘Tutorials’ template.

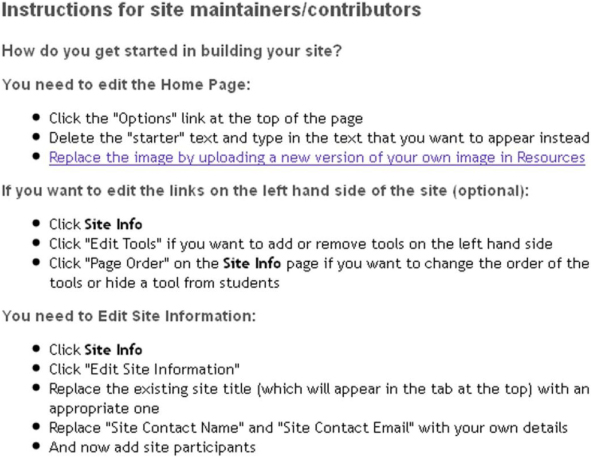

Figure 3.
Instructions to site owners (‘Tutorials’ template).

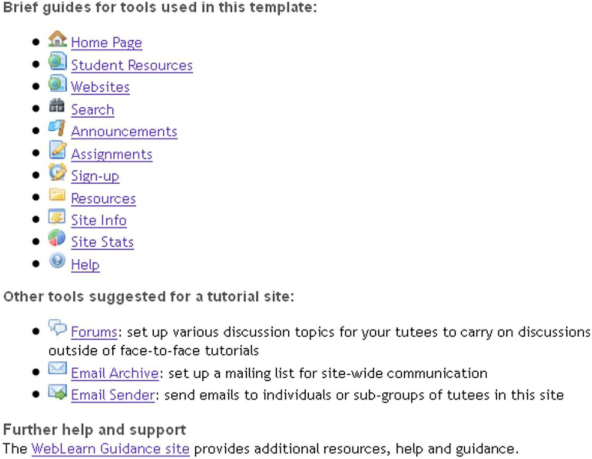

Figure 4.
Links to further help and guidance (‘Tutorials’ template).
In terms of Functionality and tools, we agreed on a basic tool set for each template, which we ‘seeded’ with Initial content. For example, in the ‘Lecture series’ template, we included the Forums (Discussions) tool in order to facilitate on-going discussions before and after lecture sessions, and we created a basic structure of forums and topics to guide the site owner. We included an RSS News tool, pointing to a feed that can easily be modified by the site owner in terms of relevance to their particular subject discipline.
No special Technical settings were implemented, beyond the customisations and extra features already incorporated in the open-source VLE currently in use. We set up specific folders in the file storage area, depending on the purpose of the template, for example, a set of folders for an 8-week ‘Lecture series’: Week 1, Week 2, … Week 8. Other examples of translating pedagogical concepts into technical settings are incorporating group-aware tools (such as Discussion Forums and other communication tools) in templates designed to foster collaborative learning, and a tool such as ‘Sign up’ to enable students to sign up for tutorial sessions in the ‘Tutorials’ template.
It became apparent that certain components are recommended in all course sites, regardless of their purpose, such as lecturer contact details, and a files and folders area to host and share resources. The list of recommended components (or ‘minimum requirements’) will depend on the particular institution and VLE in use – this is the list used at the British institution in this study:
These features usually appear on the Home Page:
A typical course site will contain a selection of course materials to support students outside the face-to-face environment:
Some of the tools mentioned may be particular to the Sakai VLE. Other VLEs will almost certainly contain similar tools, possibly with different names.
Depending on the purpose of the site, we selected from the following categories of standard tools:
Although the list of recommended common components may seem long enough to stifle variance, they offer a basic teaching delivery platform that can be arranged and augmented according to the purpose of each template. The six templates are itemised in Tables 1, 2 and 3, showing the purpose, description, pedagogical approach, functionality and tools, initial content, user expectations and user roles in each case.
Template name | Content |
Assessment |
Purpose | To give students permanent access to the syllabus, lecture notes and organisational information | To enable more consistent and rigorous assessment of student learning |
Description | A repository of organisational documents and learning materials; you can set up these materials well in advance, and open them at the start of the term, according to a predetermined schedule, or manually, as necessary | A collection of tools to support assessment and feedback on student learning in an on-going way, including self and peer assessment |
Pedagogical approach/tips | Instructor2-to-student, or administrator-to-student; delivery of lecture notes, reading lists and administrative information | Online tests or quizzes are best used for formative self-assessment. Make use of the feedback options to explain common misconceptions and to redirect study. Peer review can be enabled using the Discussions tool with student attachments. The Drop Box can be used to share private task documents between instructor and student, not necessarily for grading |
Functionality and tools | Home Page, Resources (files and folders), Syllabus, Glossary (can be in Wiki tool), Announcements, Reading Lists | Home Page, Schedule, Quizzes, Assignments, graded Discussion forums, Polls, Drop Box, Wiki |
Initial content | Basic features, plus: Course handbook/outline/syllabus, departmental timetable |
Basic features, plus: Instructions for the assignments, seeded discussion topics, initial Wiki pages |
User expectations | Use the site as a collection of information and other resources; no activity expected or required | Completion of assessment tasks before due date; participation in group activities, if provided; synthesis of model answers, if supplied |
User roles | Site can be open to all students in the department or cohort (e.g. undergraduates) Default permissions for all tools |
Site is restricted to site participants (enrolled students) who are added to the course site Default permissions for all tools |
As we concluded in Paper I (Hill et al., 2012), the tool set alone is neither necessary nor sufficient to define a pedagogically worthwhile template. We intend that the various tools be pressed into service in the way appropriate to the template's learning goals. For example, each of the last four templates includes a Wiki tool – in ‘Content’, to build a Glossary (perhaps with student references and input); in ‘Assessment’, to clarify exam question raised by students; in ‘Web 2.0’, for discussion among students and external guests or experts; in ‘Conversations’, to encourage student questions on all activities. The Assignments tool would collect preliminary work and provide formative feedback in the ‘Tutorials’ template, and the same tool could be used for graded work in the ‘Assessment’ template.
Usually an instructor building a site in the Sakai VLE would be a site member with the required ‘maintain’ (design and build) permission. However, since the templates were to be the basis for creating new sites, we clearly could not be site members in the templates – status which would be perpetuated for all new sites. At the British university, we therefore used our ‘admin’ login accounts to enable us to build the templates without actually being site members. (The American university awaits a new VLE that will afford similar opportunities for the presentation of templates to instructors, and implementation by learning technologists.)
At the British institution, day-to-day management and use of the VLE service is devolved to departments and schools. Staff members can create their own sites, if they have the required permissions to do so from their local VLE coordinator. We thus built the choice of a template into the site creation process (see Figure 5). We purposefully made the default option ‘create from template’, requiring the site owner to select a template from among the choices offered. This helps to promote awareness and use of the templates and thus enhance consistency across all new sites created.

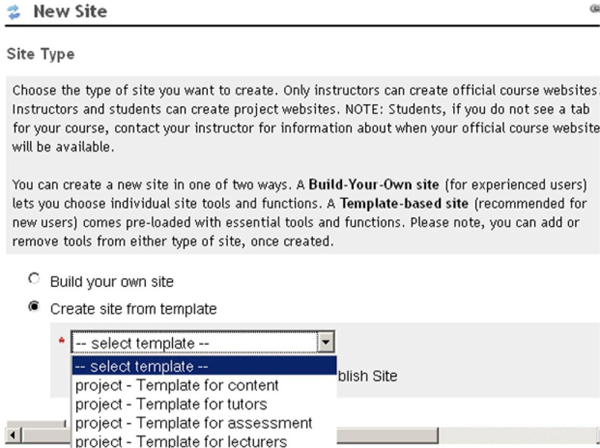

Figure 5.
New site creation process, with the default being to create it from a template.
We experienced some technical issues in creating a new site based on a template, for example, some features did not copy over correctly to the newly created site (such as the URL for the site logo), and some tool default states had to be modified to be more general (such as setting the Site Stats tool to record activity across all tools, in case the instructor adds other tools later).
Fortunately, the implementation of the templates is an on-going exercise in continuous improvement, without any completion deadline; the technical issues were easily overcome and ultimately contributed to the robustness of the templates.
Pedagogical proposals such as these templates, concrete or flexible, are difficult to evaluate in higher education, where ideas undergo constant refinement, and measurement defies quantification. The very goal, to guide rather than force the instructor, exposes the difficulties of measuring success or failure of such educational constructs. Is a template successful if it suggests teaching methods to faculty that provides good teaching outcomes (measured in some way), even if the templates themselves have little to do with it? Is a template successful even if it is edited so thoroughly that it bears no relation to the original? Are a set of templates successful even if they are not, in an instructor's final plan, used at all? Here, a broad definition of success that embraces all of these situations is warranted, to be explored in subsequent research. Such reflection will inform the research questions to guide the design of the evaluation exercise being planned for the third paper in this series.
After building the templates in the VLE, we realised that we also needed ‘example’ versions of the templates for prospective academic staff users to peruse – ‘read-only’ versions. We thus duplicated each template and made the read-only versions available on the help and support site (See Figure 6):

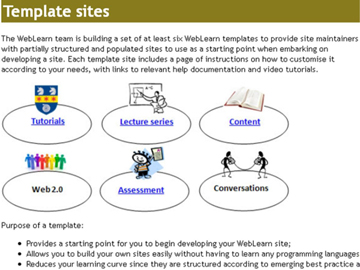

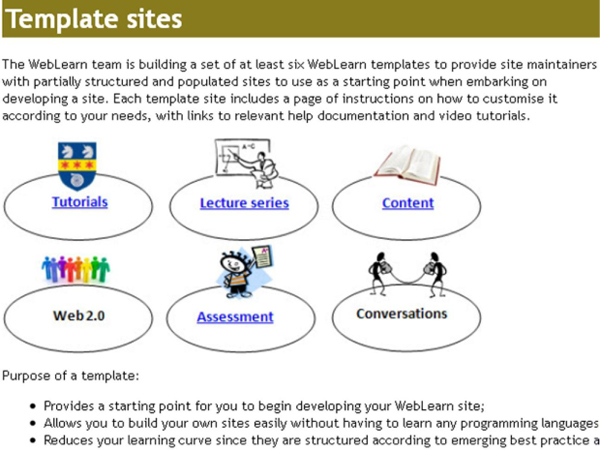

Figure 6.
Clickable read-only examples of the templates available for perusal.
The sample templates are publicly available. The web page displayed in Figure 6 can be accessed from https://weblearn.ox.ac.uk/info – select ‘Template sites’ in the ‘Showcase’ box.
The templates were promoted via the VLE user group, departmental newsletters, mailing lists, blog posts (Geng and Marshall, 2012; Highton, 2013) and various other institutional marketing mechanisms. Face-to-face training sessions now incorporate a demonstration of how to create a new site based on a template. Anecdotal evidence suggests that responses from academic staff are positive; they have expressed appreciation of the fact that they do not have to start from a blank site, and that they can get their site ‘up and running’ in a short space of time. Students anticipate that further use of the site templates will promote a more structured learning experience from their point of view (see Paper III, forthcoming).
This article describes the practical experience of applying the lattice model for course site templates (Hill et al., 2012). In particular, it illustrates that many interlocking parameters must be taken into account when designing and building course site templates for use by academic staff members. The focus of the suggested templates ranges from the efficient distribution of materials, to collaborative learning, to assessment, thus satisfying a variety of pedagogical approaches that have been shown to work well in the field of technology-enhanced learning (Weller, 2002). The standard tools in a VLE are interpreted as aids to a range of teaching activities, under the pedagogical guidance afforded by the template.
In summary, the method of experience and expedience may be best in structuring and producing a set of course site templates. This paper's contribution is the set of six comprehensive templates designed for different pedagogical scenarios. The templates were developed using an exploratory method, with the lattice model serving as inspiration and interpretation of the factors of a course site. Although it is helpful for the VLE support team to take the lead in proposing a set of templates according to the predominant teaching and learning models in use, the best course templates may emerge from observation and codification of the patterns of use of the VLE in a particular higher education institution.
1. This article employs UK terminology; where necessary, equivalent US terms are provided on the first mention.
2. The term ‘instructor’ is used to refer to either a lecturer or tutor who is facilitating the learning experience.
Anderson, T. (2004) ‘Toward a theory of online learning’, in Theory and Practice of Online Learning, ed T. Anderson. Athabasca University, Athabasca, [online] Available at: http://cde.athabascau.ca/online_book/ch2.html
Fresen, J. W. (2011) ‘Factors influencing lecturer uptake of e-learning’, in Special Edition on LAMS and Learning Design, eds J. Dalziel, C. Alexander, J. Krajka & R. Kiely, Teaching English with Technology, vol. 11, no. 1, pp. 81–97, [online] Available at: http://www.tewtjournal.org/VOL%2011/ISSUE%201/volume_11_issue_01-08_article_06.pdf
Geng, F. & Marshall, A. (2012) ‘Using templates to create new sites’, Blog post, [online] Available at: http://blogs.oucs.ox.ac.uk/adamweblearn/2012/06/using-templates-to-create-new-sites/
Highton, M. (2013) ‘Chicken and egg’, Blog post, [online] Available at: http://blogs.oucs.ox.ac.uk/melissa/2013/04/01/chicken-and-egg/
Hill, R. K., Fresen, J. W. & Geng, F. (2012) ‘Derivation of electronic course templates for use in higher education#8217;, Research in Learning Technology, vol. 20, [online] Available at: http://dx.doi.org/10.3402/rlt.v20i0.18665 [Publisher Full Text]
Jara, M. & Mohamad, F. (2007) Pedagogical Templates for e-Learning. Occasional Papers in Work-based Learning 2. University of London, Institute of Education, WLE Centre, London.
JISC. (2009) ‘Effective practice in a digital age’, [online] Available at: http://www.jisc.ac.uk/media/documents/publications/effectivepracticedigitalage.pdf
The e-Learning Coach. (2011) ‘eLearning templates’, [online] Available at: http://theelearningcoach.com/media/graphics/elearning-templates
Weller, M. (2002) Delivering Learning on the Net, Kogan Page, London.
Woodward, S. (2010) The University of Glamorgan Blackboard Template Project: Balancing Consistency with Flexibility, Case study for EvidenceNet, The Higher Education Academy, York, UK, [online] Available at: http://www.heacademy.ac.uk/assets/EvidenceNet/Case_studies/woodward.pdf
